Resuscitator PVC – Adult CP

What Is the Adult PVC Resuscitator CP?

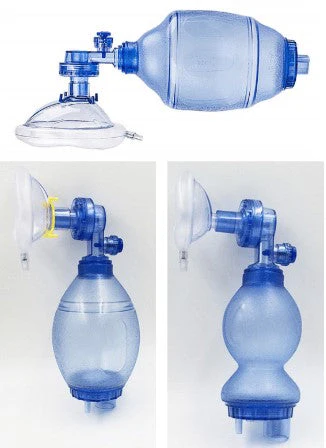

The VM-RSPVCACP is a manual bag-valve-mask (BVM) resuscitator for emergency ventilation of adult patients (over 40kg) during cardiac arrest, respiratory failure or anaesthetic induction. The PVC bag-valve assembly compresses to deliver a controlled tidal volume with each hand squeeze, and the pressure-limiting valve (40-60cmH2O) prevents barotrauma by venting excess pressure before it reaches the airway. The ISO5356-1 22/15mm patient connector interfaces with all standard adult face masks, endotracheal tube connectors, laryngeal masks and supraglottic airway devices.

Technical Performance

The resuscitator bag volume of 1500ml (±200ml) and stroke volume of ≥600ml support the tidal volumes required for adult ventilation, 6-8ml/kg ideal body weight in CPR. The 2000ml oxygen reservoir bag ensures that at an oxygen flow rate of 15L/min, the inspired oxygen fraction (FiO2) delivered is ≥85%, well above the ≥60% FiO2 required for effective oxygenation in resuscitation. The recommended ventilation rate in adult CPR is 12 BPM with a tidal volume of 600ml at 15L/min supplementary oxygen.

Infection Control, Compatibility and Availability in South Africa

The PVC construction of the VM-RSPVCACP is supplied as a single-use or limited-reuse item, and local decontamination protocols should be checked before reuse. The patient connector is compatible with all ISO5356-1 standard masks and airway devices. Available in South Africa from Vital Medical, and for reusable silicone alternatives with full autoclave capability, see VM-RSSA and VM-RSSASCP. Facilities can request a free quote through the Vital Medical website and receive a personalised response within 24 hours.

TECHNICAL SPECIFICATIONS TABLE
