High-Flow PSA Oxygen Delivery for Clinical and High-Demand Applications

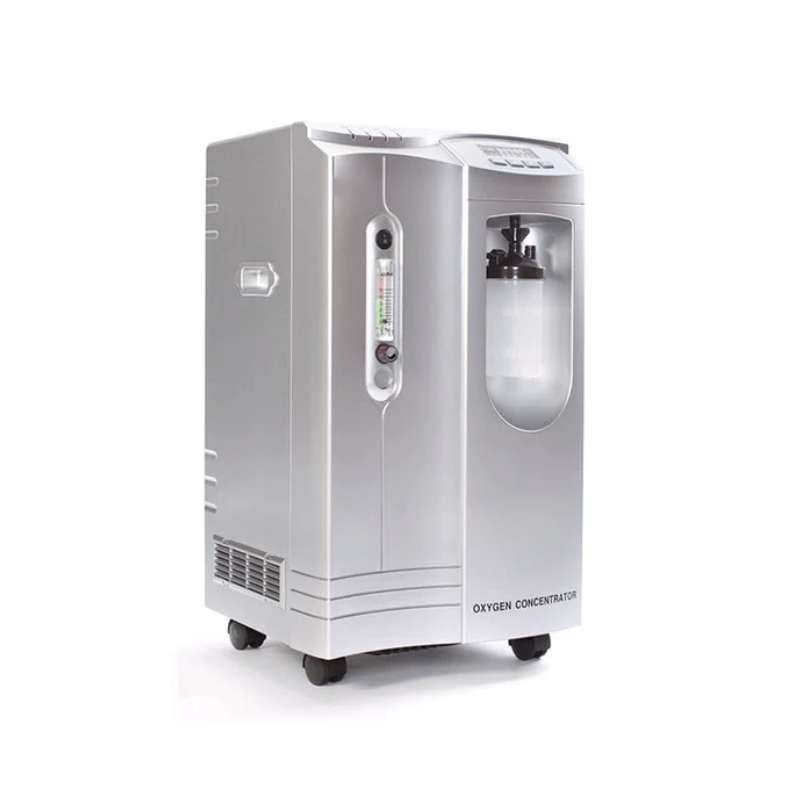

The CANTA V10-W-NS is a 10-litre high-flow oxygen concentrator designed for clinical settings where flow rates above the 5 L/min ceiling of standard home-type concentrators are required. ICUs, high-care units, emergency departments, post-operative recovery bays, and respiratory therapy services frequently prescribe 6–10 L/min oxygen flow rates for the management of severe hypoxaemia, respiratory failure, and high-acuity step-down care — and the V10-W-NS delivers these flow rates continuously across its full 0.5–10 L/min range at a therapeutic purity of 93±3%. The concentrator uses Pressure Swing Adsorption (PSA) molecular sieve technology to extract oxygen directly from ambient air, producing a continuous mains-powered oxygen supply that eliminates dependence on cylinder procurement, cylinder storage, and exchange logistics.
Safety Monitoring, Construction, and Design Features
The V10-W-NS is equipped with an LCD display showing operating parameters and running hours for maintenance scheduling, and an active alarm system covering power failure, low oxygen purity, and overheating — the three primary safety events associated with continuous-flow concentrator operation. The molecular sieve tank is water- and dust-proof, protecting the sieve material from the contamination that degrades purity output over time. A top tray provides integrated storage for accessories, and the large internal chassis design facilitates faster internal air cooling during continuous operation — supporting the sustained duty cycle required in clinical environments. Operating noise is rated at ≤55 dB. Optional additions include a flow splitter (supporting up to five simultaneous outlets), a nebulizer function, and an SpO2 sensor.
Applications and Cylinder-Free Operation
The V10-W-NS is appropriate for South African ICUs, high-care wards, respiratory therapy centres, rehabilitation units, and any clinical setting requiring a reliable high-flow oxygen source that removes cylinder supply chain dependency. As a mains-powered concentrator, it is particularly suited to fixed-station clinical deployment where continuous oxygen availability is critical and cylinder management is operationally burdensome. CE certified. Available in South Africa from Vital Medical.
TECHNICAL SPECIFICATIONS TABLE
| Specification | Detail |
|---|---|
| Brand | CANTA |
| Model | V10-W-NS |
| SKU | VM-OXYCV10WNS |
| Type | 10-litre high-flow oxygen concentrator |
| Flow Rate | 0.5–10 L/min |
| Oxygen Purity | 93±3% |
| Technology | PSA (Pressure Swing Adsorption) molecular sieve |
| Outlet Pressure | 0.04–0.08 MPa |
| Noise Level | ≤55 dB |
| Display | LCD |
| Alarms | Power failure, low purity, overheat |
| Nebulization | Not included (standard version) |
| Dimensions | 356×400×650mm |
| Net Weight | 31kg |
| Power | Mains AC |
| Certification | CE |
| Optional | Flow splitter (5-way), nebulizer function, SpO2 sensor |
