Trauma Stretcher with Height Adjustment, Trendelenburg, Adj Backrest/ Knee Section with X- Ray
- Central braking from any side of the trolley for fast, convenient immobilisation
- Radiolucent platform allows imaging without transferring the patient
- Fifth-wheel steering delivers a smaller turning radius in tight corridors and lifts
- Full-length plastic-coated side rails for patient safety
- Multi-function instrument support for monitors, doubling as a protective headboard
- Waterproof, easy-clean mattress to European standard
- Robot-welded carbon steel frame with durable spray coa

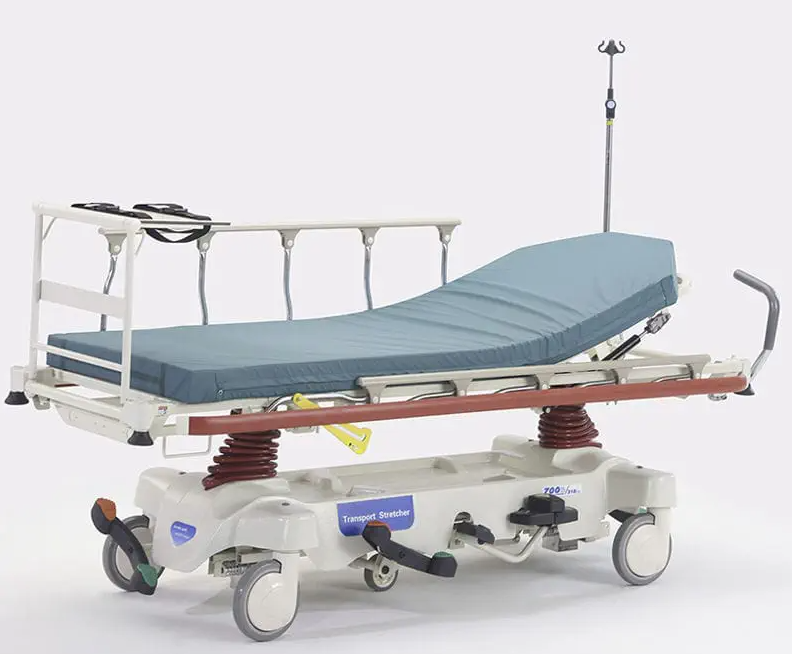

Transport Stretcher Trolley – Model E-9
A manually operated patient transport and emergency stretcher trolley designed for hospital wards, emergency departments and resuscitation areas. The E-9 combines a radiolucent patient platform, central four-pedal braking and a fifth-wheel steering system for safe, manoeuvrable patient transport, with a robust carbon steel frame rated to 240 kg.
TECHNICAL SPECIFICATIONS
| Product type | Transport / emergency stretcher trolley |
| Model | E-9 |
| Manufacturer | Hebei Pukang Medical Instruments Co., Ltd. |
| Application | Patient transport, emergency medicine and resuscitation |
| Operation | Manual |
| Overall length | 2,110 mm |
| Overall width | 760 mm |
| Height range | 580 mm – 900 mm |
| Safe working load (SWL) | 240 kg |
| Platform | Radiolucent (X-ray translucent) patient platform |
| Frame construction | High-strength carbon steel, robot-welded, spray-coated finish; stainless steel components |
| Castors | 8-inch (200 mm) silent castors, imported, high-quality bearings |
| Braking | Central brake system with four brake pedals (accessible from all sides) |
| Fifth wheel | Telescopic/collapsible fifth wheel for reduced turning radius and smooth travel over sills and obstacles |
| Side rails | Plastic-coated side rails with stainless steel columns, covering almost the full bed length |
| Instrument support | Multi-function support: holds a patient monitor and doubles as a headboard to prevent patient slippage |
| Mattress | European-standard waterproof cover, smooth easy-clean surface, non-slip fit |
| Push handle | Ergonomic push handle to reduce operator workload and prevent injury |
KEY FEATURES
- Central braking from any side of the trolley for fast, convenient immobilisation
- Radiolucent platform allows imaging without transferring the patient
- Fifth-wheel steering delivers a smaller turning radius in tight corridors and lifts
- Full-length plastic-coated side rails for patient safety
- Multi-function instrument support for monitors, doubling as a protective headboard
- Waterproof, easy-clean mattress to European standard
- Robot-welded carbon steel frame with durable spray coating
