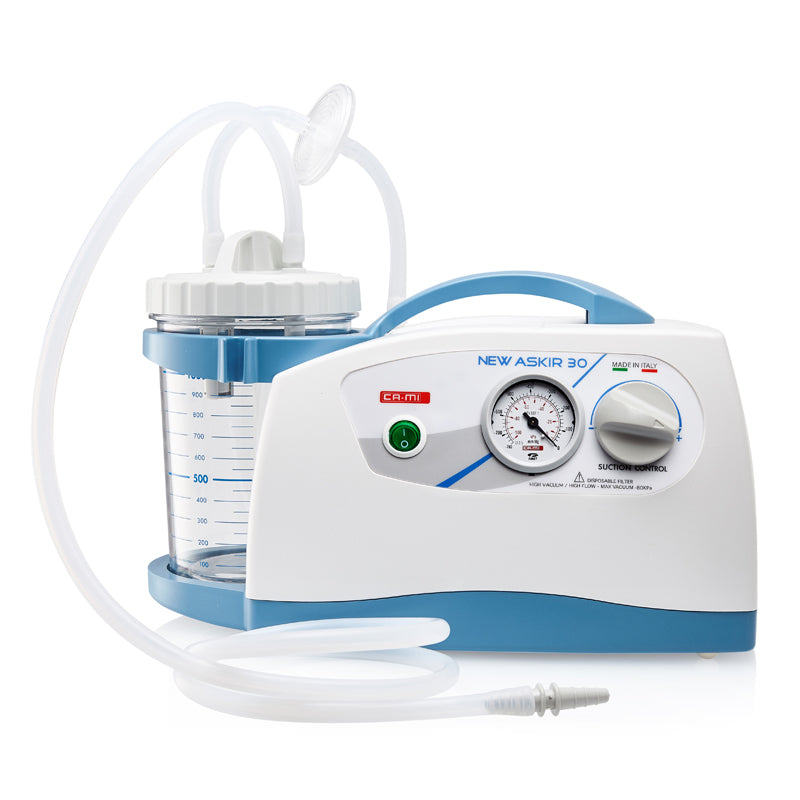

High-Vacuum, High-Flow Suction for Clinical and Home Care Settings
Classified as High Vacuum / High Flow per ISO 10079-1, the Askir 30 achieves a maximum adjustable vacuum of -0.88 bar (-600 mmHg) with a free air flow rate of 40 L/min ? performance levels appropriate for endotracheal aspiration and post-surgical clearance. The vacuum-meter (bar and kPa dual-scale) and integrated vacuum regulator allow precise, clinician-controlled suction adjustment at the bedside, in the clinic, or in the home.
Oil-Free Piston Pump with Non-Stop Duty Cycle
The Askir 30’s oilless, maintenance-free piston motor eliminates the lubrication requirements and scheduled downtime associated with traditional pump designs. Non-stop duty cycle rating means the unit can operate continuously without thermal cut-out ? essential in post-operative monitoring and extended aspiration scenarios. At 60.5 dB noise output, it maintains a low acoustic profile suited to patient care environments.
EN 60601-1-11 Compliant with IP21 Protection
Full compliance with EN 60601-1-11 certifies the Askir 30 for use in home healthcare environments ? a requirement for units deployed in community nursing, CPAP-adjacent therapy, and domiciliary care. IP21 ingress protection guards against finger contact and vertically dripping liquids. The 2-year manufacturer warranty, Italian manufacture, and included accessory kit ? comprising a liquid collection jar with overflow valve, autoclavable silicone tubing, antibacterial hydrophobic filter, CH20 cannula, and conical connectors ? make this a ready-to-deploy clinical solution.
Technical Specifications:
| Specification | Value |
|---|---|
| Model | Askir 30 |
| Manufacturer | CAMI (Italy) |
| Classification (ISO 10079-1) | High Vacuum / High Flow |
| Motor Type | Oilless, maintenance-free piston pump |
| Max Vacuum (Adjustable) | -0.88 bar / -80 kPa / -600 mmHg |
| Max Free Air Flow Rate | 40 L/min |
| Duty Cycle | Non-stop operation |
| Power Supply | 230V ? 50Hz |
| Power Consumption | 110 VA |
| Fuse | 1 ? F 1.6A 250V |
| Noise Level | 60.5 dB |
| IP Protection | IP21 |
| Standard Compliance | EN 60601-1-11 (home healthcare environment) |
| Dimensions | 35 ? 21 ? 18 cm |
| Weight | 3.6 kg |
| Included Accessories | Liquid collection jar (overflow valve), 6?10 silicone tubing (autoclavable), conical connectors ? 8?9?10mm, antibacterial hydrophobic filter (single patient), CH20 cannula, power cord |
| Warranty | 2 years |
| Place of Manufacture | Italy |
