hree-Function Manual Adjustability with Hi-Lo Height Control

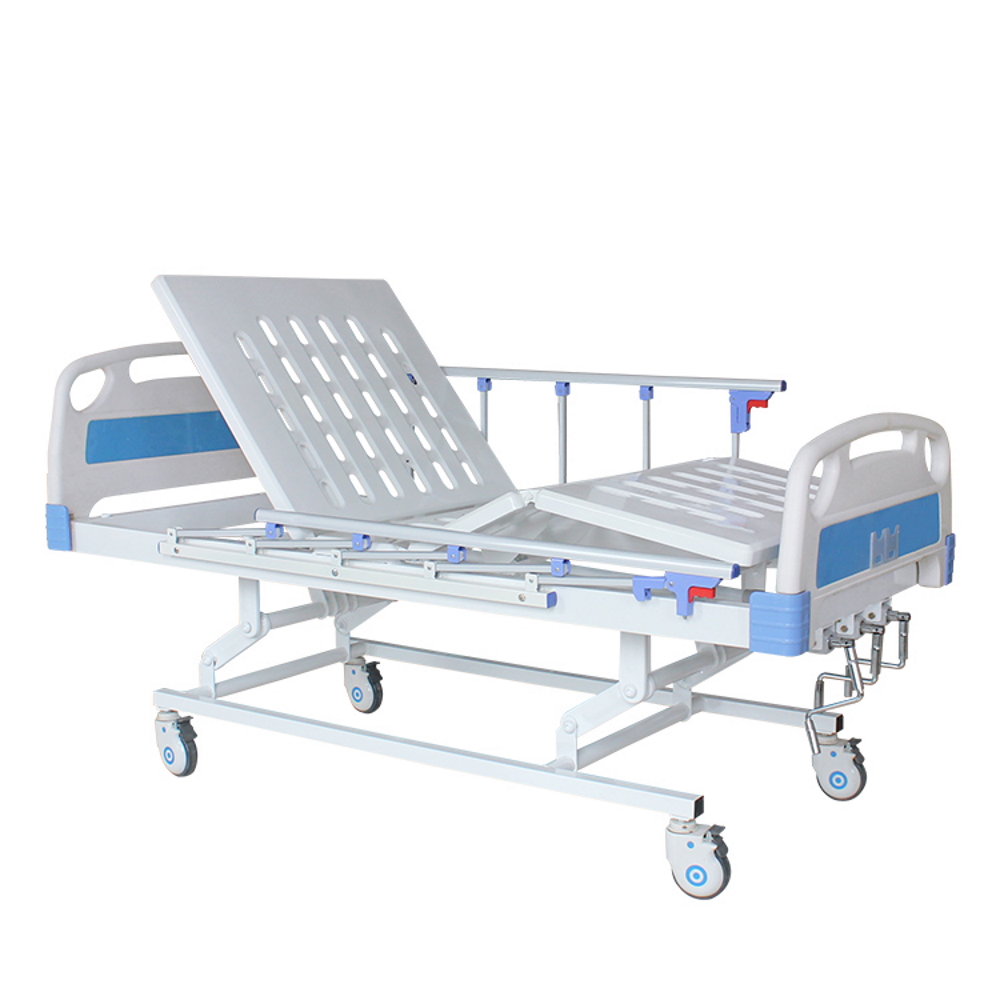

The VM-BHMB03 (DW-MB03) provides three positional functions operated by dedicated manual cranks: back-rest elevation from 0 to 75° (±10°), knee-rest elevation from 0 to 35° (±10°), and full hi-lo height adjustment across a range of 400 to 700 mm. The inclusion of height adjustment significantly extends the clinical utility of the bed, enabling nursing staff to raise the platform to a comfortable working height for procedures and assessments, and to lower it to reduce fall risk during patient transfers. These three functions collectively support Fowler’s and semi-Fowler’s positioning, limb elevation, and ergonomic caregiver access without requiring electrical infrastructure or powered actuators.
Construction, Safety, and Standard Accessories
The DW-MB03 frame is mounted on four 5″ covered castors, enabling smooth ward repositioning while maintaining a stable platform for patient transfers. Foldable side rails provide fall-prevention without permanently restricting patient access, and the ABS bed ends incorporate a safe-lock mechanism to maintain structural rigidity during care activities. As standard, the bed ships with an IV pole with four provision points, four drainage hooks, and two mattress holders, addressing the core clinical accessory requirements for inpatient and step-down care without the need for supplementary procurement.
Dimensions, Load Capacity, and Availability in South Africa
The VM-BHMB03 (DW-MB03) has an external footprint of 2110 x 960 mm across a height range of 400 to 710 mm, with a usable mattress platform of 1925 x 820 mm accommodating standard hospital mattress sizes. Its 135 kg safe working load supports the broad adult patient population encountered in South African public and private healthcare settings. Available in South Africa from Vital Medical, the VM-BHMB03 (DW-MB03) is well suited to general wards, step-down units, and frail care facilities where height adjustment alongside back and knee positioning functions is required.
Technical Specifications
| Specification | Value |
|---|---|
| Model | DW-MB03 |
| Vital Medical Code | VM-BHMB03 |
| Bed Type | Three-function manual, hi-lo height adjustable |
| External Dimensions (L x W x H) | 2110 x 960 x 400–710 mm |
| Mattress Platform | 1925 x 820 mm |
| Safe Working Load | 135 kg |
| Back-Rest Adjustment | 0–75° (±10°) |
| Knee-Rest Adjustment | 0–35° (±10°) |
| Height Adjustment | 400–700 mm |
| Manual Cranks | 3 pcs |
| Castors | 5″ covered, 4 pcs |
| Side Rail | Foldable, 1 set |
| Bed Ends | ABS with safe lock, 1 set |
| IV Pole | 1 set |
| IV Pole Provision Points | 4 pcs |
| Drainage Hooks | 4 pcs |
| Mattress Holders | 2 pcs |
| Packed Weight (bed) | 76 kg |
| Packing Dimensions (bed box) | 1950 x 930 x 280 mm |
| Packing Dimensions (head/foot box) | 970 x 230 x 480 mm |
