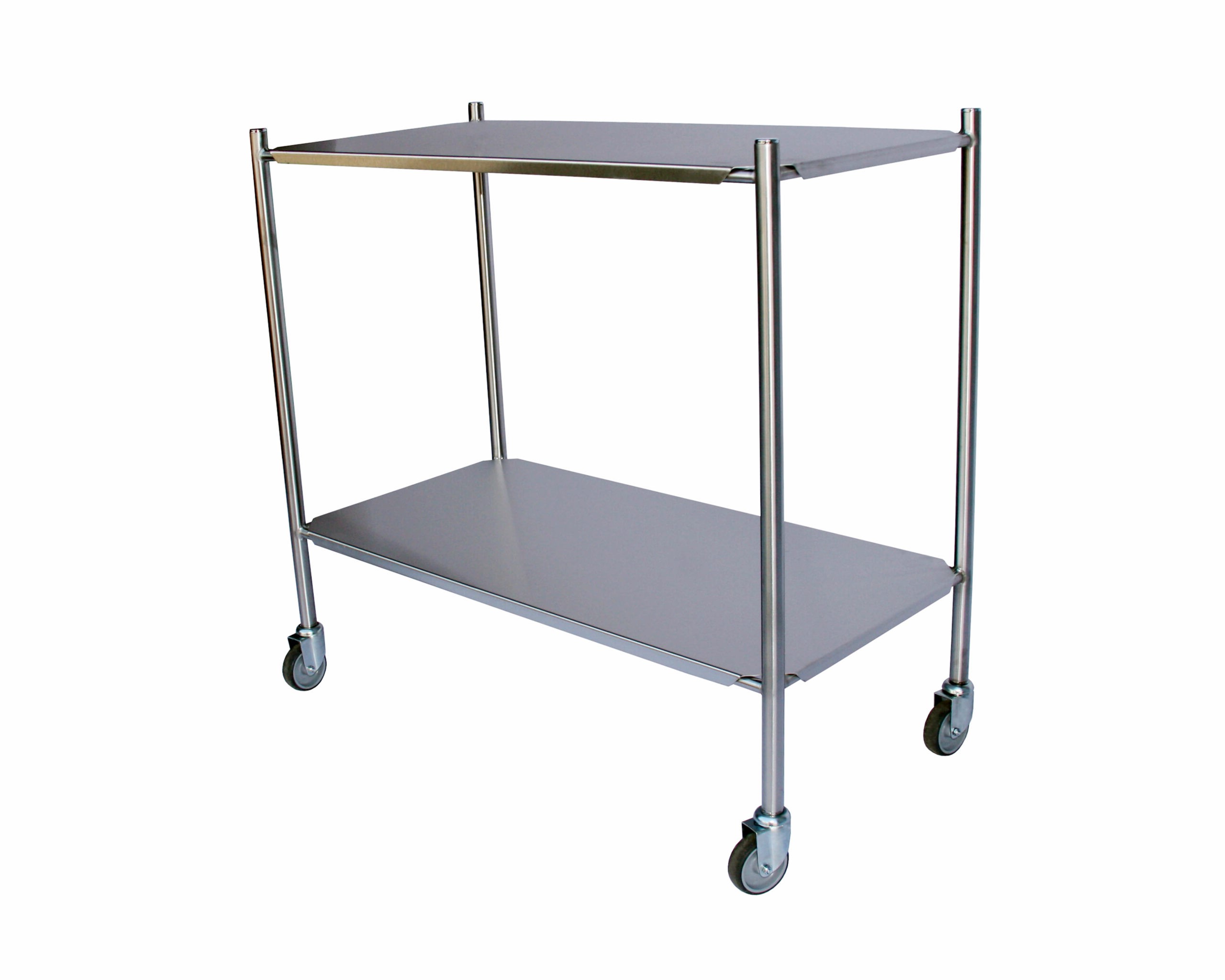

The VM-ITLSS Large Stainless Steel Instrument Trolley is the highest-capacity model in the stainless steel instrument trolley range ? offering a 915mm-deep working surface that accommodates full theatre instrument sets, multiple trays, sterile packs, and procedural supplies laid out simultaneously. Like the small and medium models, it is manufactured from 25mm round tube stainless steel throughout, with no mixed materials that could resist decontamination or corrode at junctions.
Fully Stainless Steel Construction
Frame and both shelves are stainless steel ? resistant to hospital-grade disinfectants, autoclaving splash, and the repeated surface cleaning protocols required in sterile and semi-sterile clinical environments. Four 25mm chrome-plated caps seal the top of the frame tubes to prevent fluid ingress and provide a clean, finished appearance.
Dual-Shelf Configuration
The upper shelf ? supported by four 16mm round tubes welded at the top of the frame ? provides the primary instrument surface at a comfortable standing working height. The lower shelf, supported by four 16mm round tubes welded 220mm from the base, offers substantial secondary storage for additional instruments, sterile packaging, specimen containers, or procedural consumables ? keeping the primary surface organised and uncluttered during complex procedures.
Maximum Instrument Surface in the Range
At 915mm deep, the VM-ITLSS provides the largest instrument layout area in the range ? approximately 50% more surface than the medium model. This capacity is particularly valuable in surgical theatres where a full instrument set must be visible and accessible to the scrub nurse simultaneously, or in procedure rooms where multiple setups are staged in parallel.
75mm Swivel Castors
Four 75mm swivel castors provide smooth, multi-directional mobility around the theatre or procedure room ? essential where the trolley must be repositioned around a patient or surgical field without disrupting the sterile setup. The larger castor diameter rolls cleanly over standard clinical flooring.
Suitable For:
Surgical theatres, major and minor procedure rooms, orthopaedic and endoscopy suites, obstetric theatres, outpatient procedure bays, dental surgeries, and any clinical setting requiring a full instrument layout surface.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | VM-ITLSS |
| Size | Large |
| Overall Dimensions | 458 ? 915 ? 850mm (W ? D ? H) |
| Frame Material | 25mm round tube stainless steel |
| Shelf Material | Stainless steel |
| Number of Shelves | 2 (upper and lower) |
| Shelf Support | 16mm round tubes welded to frame |
| Upper Shelf Position | Top of frame |
| Lower Shelf Position | 220mm from base |
| Frame Caps | 25mm chrome-plated caps |
| Castors | 4 ? 75mm swivel |
